Continuous Long Stroke
bucking units

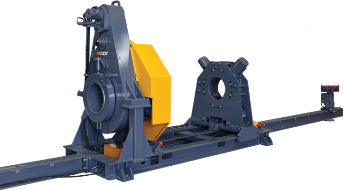

The continuous long stroke bucking unit is a rugged, self-contained continuously rotating unit designed to accurately make up or break out the threaded connections on tubular components, such as oil and gas well drilling tools, casing, tubing, and similar components, without damaging threads.
This bucking unit is user-friendly and can be safely and efficiently operated by one person, with simple and minimal maintenance. Can be custom-manufactured to meet customer needs, and to include a hydraulic power unit and choice of length of skid.
Additional options include WINCATT® Torque/Turn Monitoring System, hydraulic support stands, vises, push-pull assemblies, extension beams, and much more.
Compare
All Continuous Long Stroke bucking units
- Maximum Torque
- Minimum Calibrated Torque
- Minimum Pipe Size OD
- Maximum Pipe Size OD
- Tong Configuration
- Backup Configuration
- Backup Compliance
- Notes
- 10,000 lbf·ft (13,558 N·m)
- 1,500 lbf⋅ft (2,034 N·m)
- 1.66 in. (25 mm)
- 9 in. (229 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 50,000 ft·lb. (67,791 N·m)
- 1,500 ft-lb. (2,034 N·m)
- 2.375 in. (51 mm)
- 12.25 in. (305 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 50,000 lbf⋅ft (67,791 N·m)
- 1,500 lbf⋅ft (2,034 N·m)
- 2.375 in. (51 mm)
- 16 in. (406 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 35,000 lbf·ft (47,454 N·m)
- 1,500 lbf⋅ft (2,034 N·m)
- 2.375 in. (51 mm)
- 12.25 in. (305 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 105,000 lbf·ft (142,361 N·m)
- 1,500 lbf⋅ft (2,034 N·m)
- 3.5 in. (76 mm)
- 12.25 in. (305 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 105,000 lbf·ft (142,361 N·m)
- 1,500 lbf⋅ft (2,034 N·m)
- 3.5 in. (76 mm)
- 17.4 in. (432 mm)
- Closed
- Closed
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
- 105,000 ft-lb. (142,361 N·m)
- 1,500 ft·lb. (2,034 N·m)
- 7 in. (178 mm)
- 21.5 in. (533 mm)
- Closed
- Closed / Hinged
- Fixed
- Since the nature of our bucking units allow for multiple lengths, the overall lengths and weights will vary with configuration
