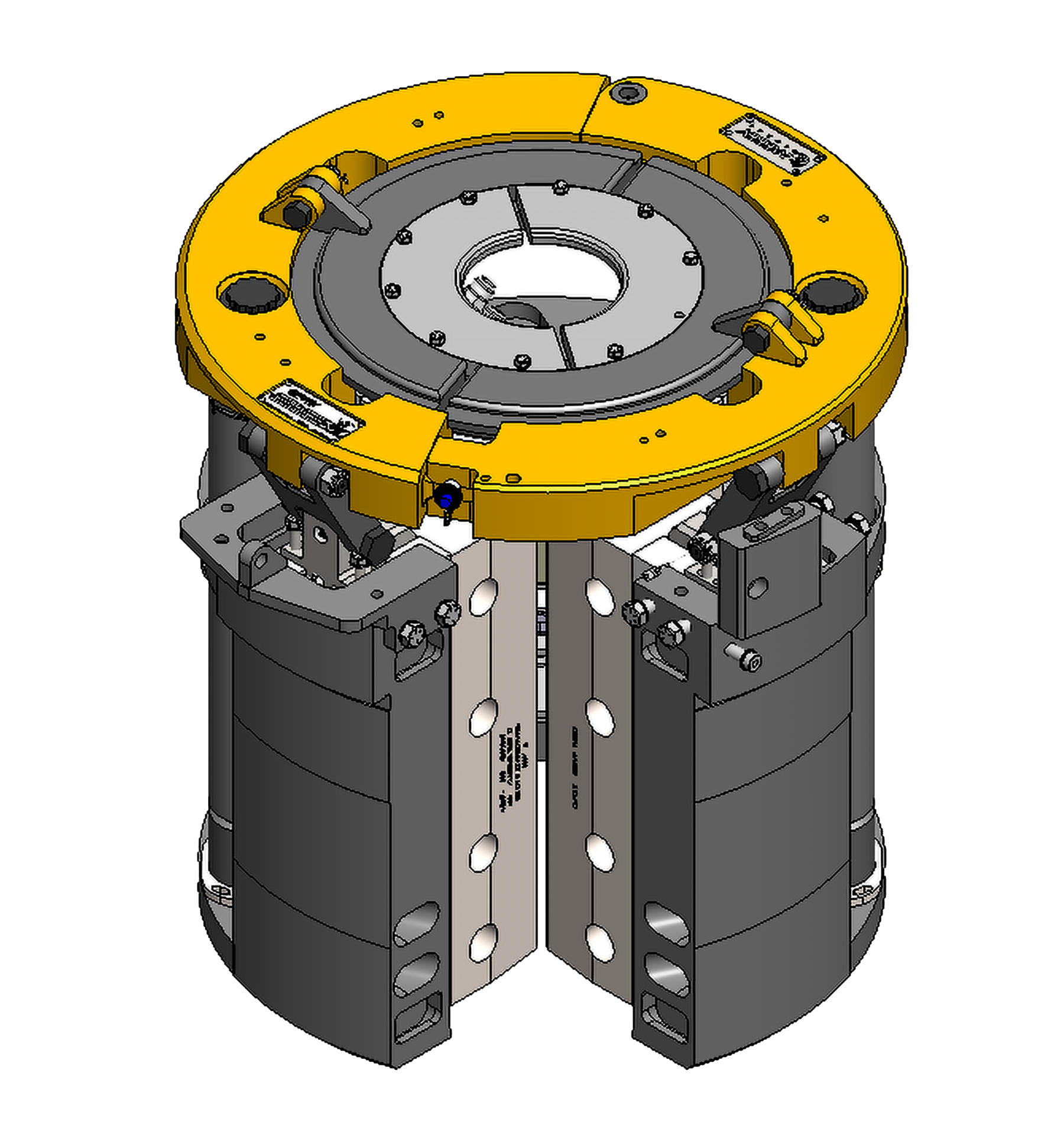

smartFMS™ Flush Mounted Spider
McCoy’s smartFMS™ is a rotary equipment developed to handle casing using replaceable die carriers and provides back-up torque of up to 50,000 ft.lbs. from first pipe joint, hence removing the need for integrated backups and manual tongs. This is a fully connected device that in real-time provides information on the state of the tool to the driller’s display (also used with a smartCRT™). Both tools are constantly monitored, providing enhanced safety and reassurance that these are not open at the same time. smartFMS™ increases efficiency and safety by eliminating human error and guaranteeing consistency and repeatability of operations.
- Fits inside of rotary with a relatively low profile
- Reacts backup torque
- Holds weight of casing string
- Removes latching / unlatching of manual tongs & integrated backups (saves time)
- Removes casing crew from the possible pinch points
- Increases overall speed, efficiency and safety
Performance Specifications
- Maximum Tension Rating – 350 tons

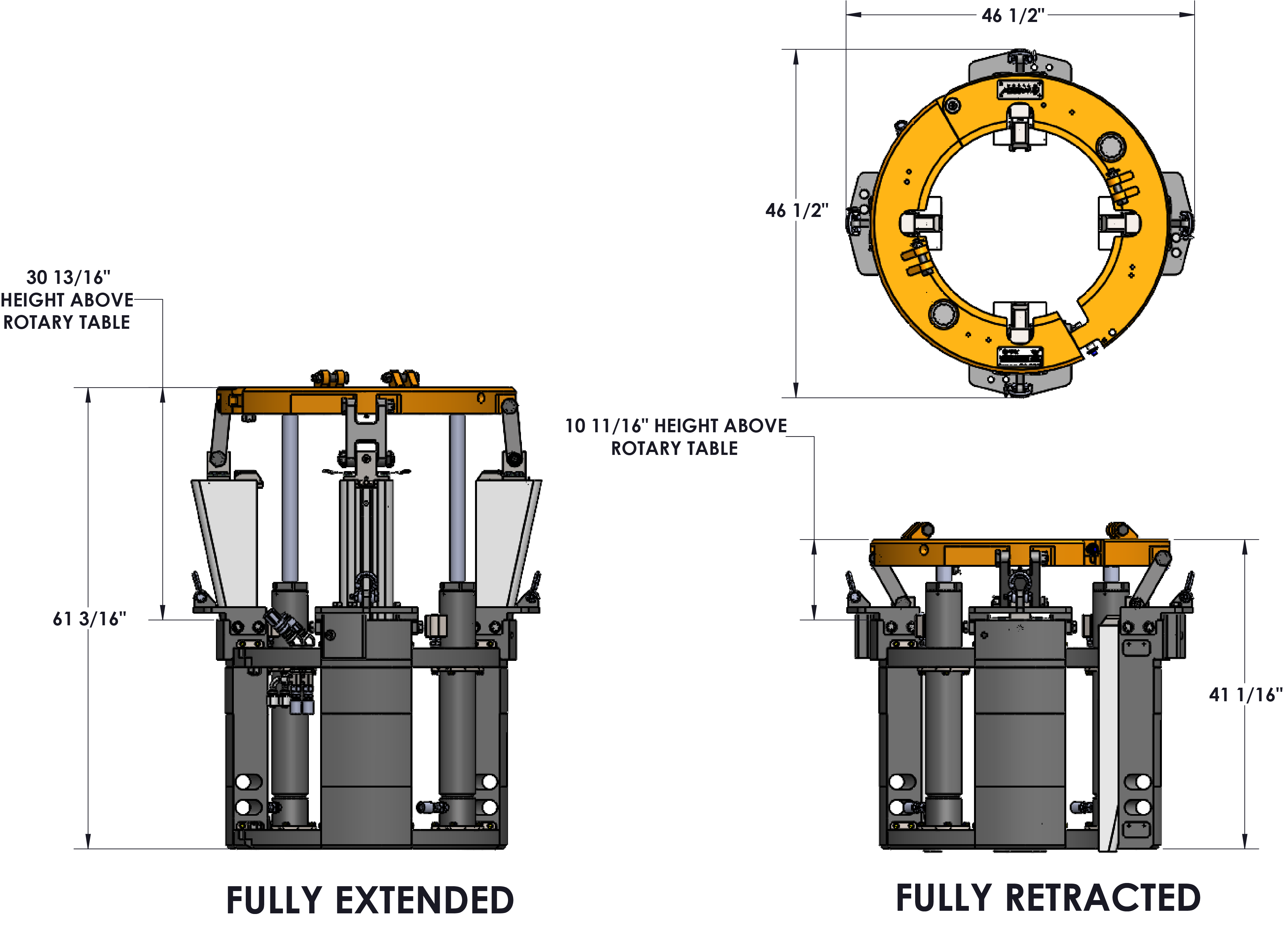

- Designed to fit inside of a 27 ½” API Rotary Table
- Total cylinder cycle time is 6 seconds
- Tool Grip Range – Casing sizes 13 5/8” – 2 3/8”
Patent US14/226541
Patent CA2943038
Patent MYPI2016703458
FLUSH MOUNT SPIDER SPECIFICATIONS |
||
|---|---|---|
MAXIMUM TENSION RATING |
350 TONS |
317 TONNES |
MAXIMUM WORKING PRESSURE |
2000 PSI |
138 BAR |
FLOW RATE REQUIRED |
34 GPM |
128 LPM |
MASS (TOOL ONLY) |
2900 LBS |
1315 KG |
MASS RANGE (CARRIERS AND GUIDE PLATES INCLUDED) |
3050 - 3700 LBS |
1383 - 1678 KG |
TIME TO EXTEND AND RETRACT |
6 SECONDS |
|
COMPATIBLE ROTARY TABLE |
27 1/2”, 37 1/2* |
|
CASING SIZE RANGE |
13.625" |
2.375" |
* With addition of the Adapter Ring, same FMS can be used with any other most common 37 1/2" Rotaries: NATIONAL or EMSCO configuration
*MAXIMUM TORQUE AT 2000 PSI WORKING PRESSURE ON A SINGLE JOINT |
|
|---|---|
PIPE SIZE (IN) |
TORQUE (FT-LB) |
13.625 - 7.625 |
50000 |
7.563 - 7.000 |
38000 |
6.938 - 5.500 |
30000 |
5.438 - 4.500 |
22000 |
4.438 - 3.500 |
14000 |
3.438 - 2.375 |
3000 |
* Torque values are determined by slip upon the pipe and not the limitations of the tool
* With addition of the Adapter Ring, same McCoy FMS can be used with any of the most common 37 1/2" Rotaries: NATIONAL or EMSCO configuration

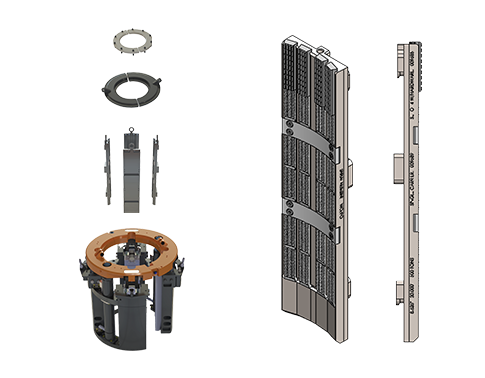

Interchangeable Parts
- Insert Carriers
- Multiple sizes of insert carriers to cover the full range of gripping
- Carrier utilize a combination of tong dies and handling tool dies that need to be changed out to grip different sizes without needing to open the FMS
- Carriers are easily interchangeable, utilizing a spring latch to hold the carriers secure
- Due to geometry, the tension rating for carriers decreases for the smaller pipe sizes
- Wear Guides
- Need to be changed for individual sizes of casing in order to help ensure a good bite
- Sized to allow common centralizer sizes through without need to remove them
13 5/8 – 13 3/8 Carrier Shown Above
TENSION RATING FOR CARRIERS |
|
|---|---|
PIPE SIZE (IN) |
MAX TENSION IN TONS (TONNES) |
13.625 - 6.000 |
350 (317) |
5.500 - 4.500 |
240 (218) |
3.500 - 2.375 |
100 (91) |
FMS Sensor Package
- Includes two linear sensors inside of cylinders
- Includes two pressure transducers included inside of control console (sold separately)
- Both sensors work with McCoy’s Edge Server
- Linear Sensors determine if the casing is appropriately gripped before releasing the slips
- Pressure transducer determines if adequate pressure is being supplied
